Rio PMP300

PMP

The Rio PMP300 is one of the first portable consumer MP3 digital audio players, and the first commercially successful one. Produced by Diamond Multimedia, it was introduced in 1998 as the first in the ‘Rio’ series of digital audio players, and it shipped later that year. The Rio retailed for US $200 with the ability to hold around 30 minutes of music at a bitrate of 128 kbit/s.

It shipped with 32 MB of internal memory and has a SmartMedia slot, allowing users to add additional memory. It is powered by a single AA battery, which provides between 8 and 12 hours of playback time. Connection to a personal computer is through the computer’s parallel port, with a proprietary connector on the Rio’s edge.

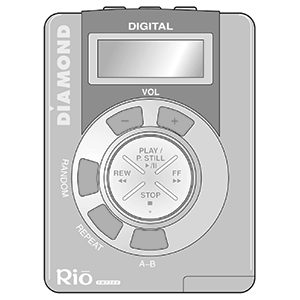

Roughly the dimensions of a deck of cards, the Rio is black, and features an LCD screen and a circular pad with control buttons. The device has controls for skipping tracks forwards or backwards, repeat, random play and four preset equalizer settings. The LCD displays the filename of the track being played. It can play MP2 and MP3 format audio files, and supports a variety of bitrates, including MP3 variable-bitrate (VBR).

An upgraded version was later released, which is colored translucent green and equipped with a larger 64 MB internal memory, at a cost of $250. The Rio also spawned one of the first Digital Music service providers (ASP or SaaS Cloud Service), RioPort. RioPort was the first digital music service to license secure, single-track commercial downloads from major record labels.

The Rio PMP300 was supplied with a copy of Music Match software for managing the user’s MP3 library. A selection of folk/country/blues MP3s were also provided, the metadata for which was in a Music Match specific format rather than as ID3 tags.

The Rio PMP300 suffered from a few design flaws. The battery compartment door flap is notorious for breaking. The battery cover is difficult to repair due to the stress caused by the spring-loaded battery compartment and the fragile plastic used for the door clips. The metal hinge used to hold the compartment to the base of the unit would put strain on the plastic casing, causing cracks around the SmartMedia slot. The silver colored coating on the main central control button in the original 32 MB unit would often peel and flake off with use. The control disc would commonly fall off.

One month after the PMP300 launched, the Recording Industry Association of America filed suit and asked for a temporary restraining order to prevent the sale of the Rio player in the Central District Court of California, claiming the player violated the 1992 Audio Home Recording Act. The judge issued a temporary order, but required the RIAA to post a $500,000 bond that would be used to compensate Diamond for damages incurred in the delay if Diamond eventually prevailed in court. Diamond then announced that it would temporarily delay shipment of the Rio. The judge denied the RIAA’s application. On appeal, the Ninth Circuit held that the Rio’s space shifting was fair use and not a copyright infringement. After the lawsuit ended, Diamond sold 200,000 players.
