Walking Truck

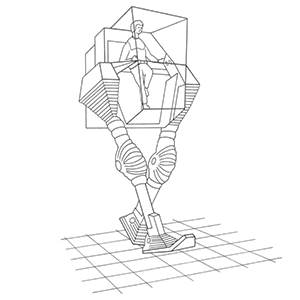

Ralph Mosher

The walking truck or Cybernetic Walking Machine was an experimental quadruped walking vehicle created by General Electric in 1965. It was designed by engineer Ralph Mosher to help infantry carry equipment over rough terrain. It alternatively bore the name of ‘CAM,’ an acronym for ‘cybernetic anthropomorphous machine,’ as seen in a segment of the Walter Cronkite–hosted documentary television program ‘The Twentieth Century’ in 1968.

As of 2019, the surviving prototype can be seen at the U.S. Army Transportation Museum in Fort Eustis, Virginia. The robot weighs 3,000 pounds and can walk up to 5 miles per hour. It was exhausting to control and, according to program lead Mosher who was the designer and primary driver, operators could only drive the walking truck for a limited time. Mosher also worked on the unsuccessful Hardiman project for GE, the first attempt to build a practical powered exoskeleton.

The stepping of the robot was controlled by a human operator through foot and hand movements coupled to hydraulic valves. The complex movements of the legs and body pose were done entirely through hydraulics. The hydraulic fluid and pressure was supplied through an off-board system. The walking truck was one of the first technological hardware design applications to incorporate force feed-back to give the operator a feel of what was happening.

In 2002, Plustech, a Finnish subsidiary of American agricultural, construction, and forestry machinery manufacturer John Deere, developed a ’Timberjack Walking Machine’ or ‘Walking Tractor’ meant to traverse forested terrain. Locomotion is provided by six articulated legs, and it is capable of moving forward, backward, sideways, and diagonally.
