Orbitron

orbitron

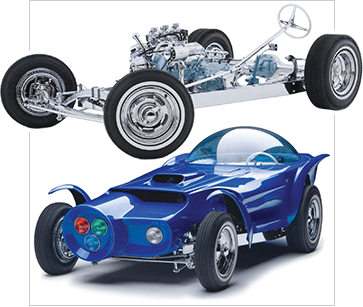

The Orbitron is a custom car built by Ed Roth and feared lost until its rediscovery in Mexico in 2007. Built in 1964, the vehicle was powered by a 1955 or 1956 Chevrolet V8 and was backed by a Powerglide automatic transmission. The body was hand-laid fiberglass which actually hid Roth’s extensive chrome work to the chassis.

The cockpit, set at the extreme rear of the vehicle in the manner of a dragster, was lined with fake fur and featured a General Electric portable television inserted in the console. Topping the cockpit was a custom-made, hydraulically operated plexiglass bubble top. One of a series of ordinary doorbell switches atop the hood activated the top from the outside.

Other mechanical features included a 1956 Chevrolet rear end, dropped Ford front axle beam, Buick brake drums and early Ford brakes. The frame was handmade of 2×4 boxed steel tubing. The vehicle’s most distinctive feature was its asymmetrical front end with red, green and blue tinted headlamps. It was thought that the three beams when combined would produce an intense white light; the idea came from the then-new medium of color television.

Fellow automotive customizer Darryl Starbird purchased the vehicle from Roth in 1967 for $750. Starbird traded the vehicle some years later to an unidentified collector in Texas. From Texas the Orbitron was traded to a carnival owner in Ciudad Juárez, Chihuahua, Mexico in or around 1991. By that time the asymmetrical nose had been cut off and discarded, possibly for additional air flow to the radiator for the car’s use in and around the carnivals.

Automotive restorer Michael Lightbourn, who heard rumors of the car’s existence in Ciudad Juárez, discovered it parked in front of an adult bookstore for use as an advertising aid. The car had been sprayed in faded black primer and was basically complete except for the hood, the tachometer, the television, the fur lining, the long-missing nose and the bubble top, believed destroyed in the early 1970s when it became stuck and trapped the car’s then-owner.

The family who owned the bookstore had also owned the carnival in which the car was used. After intense negotiations with the family (who were reluctant to sell the deteriorating vehicle for what they said were sentimental reasons), Lightbourn was finally able to return the Orbitron to the United States. Upon its return, the Orbitron was sold to Beau Boeckmann of ‘Pimp My Ride’ fame who completed the restoration of the car. All original parts removed from the car, including the frame which was too rusted to reuse, were retained and archived by Boeckmann. Accuracy of the project was supervised by former Roth designer Ed ‘Newt’ Newton who assisted in the original 1964 design.

The restoration includes a television of the same type originally installed in the console. A small reel-to-reel tape recorder hidden in the cockpit and which was intended to play a musical recording of the car’s features was discovered along with the original tape during the restoration process and is in working order; the recording was reportedly done by country musician, Tex Ritter.

Planet Plastics of Chino, California, the original company contracted to create the bubble top, was contracted to create a replacement. Evidence of the car’s original ‘candy blue’ color (similar in execution to ‘candy apple red’) was discovered within the interior and was used as a basis for matching the replacement finish. Paint work was overseen by Larry Watson, who painted the car in 1964. Watson was joined by his original assistant, Bill Carter who applied the new finish.

A descendant of the individual responsible for the pin-striping applied the new pin-striping to the vehicle upon its completion. Interior restoration was by Joe Perez who was responsible for the original upholstery work as well. The original Chevrolet engine with its rare Stromberg triple carburetor setup and Chevrolet Corvette finned aluminum valve covers has been rebuilt and reinstalled.
