Demon Core

demon core

The Demon Core was the nickname given to a 6.2-kilogram (14 lb) subcritical mass of plutonium that accidentally went briefly critical in two separate accidents at the Los Alamos laboratory in 1945 and 1946. Both incidents resulted in the acute radiation poisoning and the subsequent death of a scientist.

After these incidents, the sphere of plutonium was referred to as the Demon Core. The core was used in an atomic bomb test in 1946, five weeks after the second fatal accident, and proved in practice to have a slightly increased yield over similar cores which had not been subjected to criticality excursions.

In the 1945 incident, the plutonium core produced a burst of neutron radiation that caught Harry Daghlian in its path. Daghlian was a physicist who made a mistake while working alone performing neutron reflection experiments on the core. The core was placed within a stack of neutron-reflective tungsten carbide bricks, and the addition of each brick moved the assembly closer to criticality. While attempting to stack another brick around the assembly Daghlian accidentally dropped it onto the core and thereby caused the core to go critical. Despite quick action in moving the brick off the assembly, Daghlian received a fatal dose of radiation. He died 25 days later from acute radiation poisoning.

The following year, physicist Louis Slotin and seven other scientists were in a Los Alamos laboratory conducting an experiment to verify the exact point at which a subcritical mass (core) of fissile material could be made critical by the positioning of neutron reflectors. It required the operator to place two half-spheres of beryllium (a neutron reflector) around the core to be tested and manually lower the top reflector over the core via a thumb hole on the top. As the reflectors were manually moved closer and farther away from each other, scintillation counters measured the relative activity from the core.

Allowing them to close completely would result in the instantaneous formation of a critical mass and a lethal power excursion, and the only thing preventing this was the blade of a standard flathead screwdriver manipulated by the scientist’s other hand. The test was known as ‘tickling the dragon’s tail’ for its extreme risk, and was notoriously unforgiving of even the smallest mistake; many scientists refused to perform the test, but Slotin (who was given to bravado) became the local expert, performing the test almost a dozen separate times, often in his trademark bluejeans and cowboy boots in front of a roomful of observers. Enrico Fermi reportedly told Slotin and others they would be ‘dead within a year’ if they continued performing it.

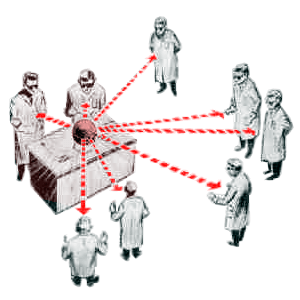

While lowering the top reflector, Slotin’s screwdriver slipped a fraction of an inch, allowing the top reflector to fall into place around the core. Instantly there was a flash of blue light and a wave of heat across Slotin’s skin; the core had become supercritical, releasing a massive burst of neutron radiation. He quickly knocked the two halves apart, stopping the chain reaction and likely saving the lives of the other men in the laboratory. Slotin’s body positioning over the apparatus also shielded the others from much of the neutron radiation. He received a massively lethal dose in under a second and died nine days later from acute radiation poisoning.

The nearest physicist to Slotin, Alvin C. Graves, was watching over Slotin’s shoulder and was thus partially shielded by him, receiving a high but non-lethal radiation dose. Graves was hospitalized for several weeks with severe radiation poisoning, developed chronic neurological and vision problems as a result of the exposure, suffered a significant shortening of his lifespan and died of a radiation-induced heart attack 20 years later. The other six people in the room were far enough away from the assembly to avoid fatal injury, but they all suffered other complications as a result of the accident.

The Demon core was put to use for the Able detonation test of the Crossroads series on July 1, 1946, demonstrating that the criticality experiments of Daghlian and Slotin increased the efficiency of the weapon.
