John Whitney

arabesque

catalog

John Whitney (1917 – 1995) was an American animator, composer and inventor, widely considered to be one of the fathers of computer animation. Whitney was born in Pasadena, California and attended Pomona College. His first works in film were 8 mm movies of a lunar eclipse which he made using a homemade telescope. In 1937-38 he spent a year in Paris, studying twelve-tone composition under French composer Rene Leibowitz. In 1939 he returned to America and began to collaborate with his brother James on a series of abstract films.

During the 1950s Whitney used his mechanical animation techniques to create sequences for television programs and commercials. In 1952 he directed engineering films on guided missile projects. One of his most famous works from this period was the animated title sequence from Alfred Hitchcock’s 1958 film ‘Vertigo,’ which he collaborated on with the graphic designer Saul Bass.

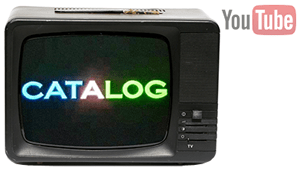

In 1960, he founded Motion Graphics Incorporated, which used a mechanical analog computer of his own invention to create motion picture and television title sequences and commercials. The following year, he assembled a record of the visual effects he had perfected using his device, titled simply ‘Catalog.’ In 1966, IBM awarded John Whitney, Sr. its first artist-in-residence position.

By the 1970s, Whitney had abandoned his analog computer in favor of faster, digital processes. The pinnacle of his digital films is his 1975 work ‘Arabesque,’ characterized by psychedelic, blooming color-forms. His work during the 1980s and 1990s, benefited from faster computers and his invention of an audio-visual composition program called the Whitney-Reed RDTD (Radius-Differential Theta Differential). Works from this period such as ‘Moondrum’ (1989–1995) used self-composed music and often explored mystical or Native-American themes.

The analog computer Whitney used to create his most famous animations was built in the late 1950s by converting the mechanism of a World War II M-5 Antiaircraft Gun Director. Later, Whitney would augment the machine with a more recent M-7 detector, creating a twelve-foot-high machine. Design templates were placed on three different layers of rotating tables and photographed by multiple-axis rotating cameras. Color was added during optical printing.

Whitney’s son, John, Jr., described the mechanism in 1970: ‘I don’t know how many simultaneous motions can be happening at once. There must be at least five ways just to operate the shutter. The input shaft on the camera rotates at 180 rpm, which results in a photographing speed of 8 frame/s. That cycle time is constant, not variable, but we never shoot that fast. It takes about nine seconds to make one revolution. During this nine-second cycle the tables are spinning on their own axes while simultaneously revolving around another axis while moving horizontally across the range of the camera, which may itself be turning or zooming up and down. During this operation we can have the shutter open all the time, or just at the end for a second or two, or at the beginning, or for half of the time if we want to do slit-scanning.’
